HV Series

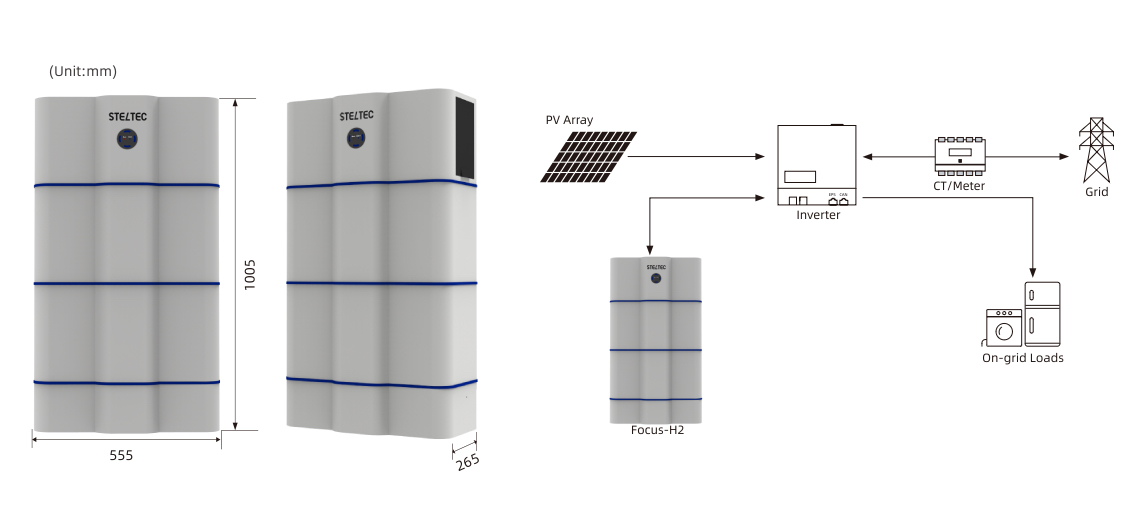

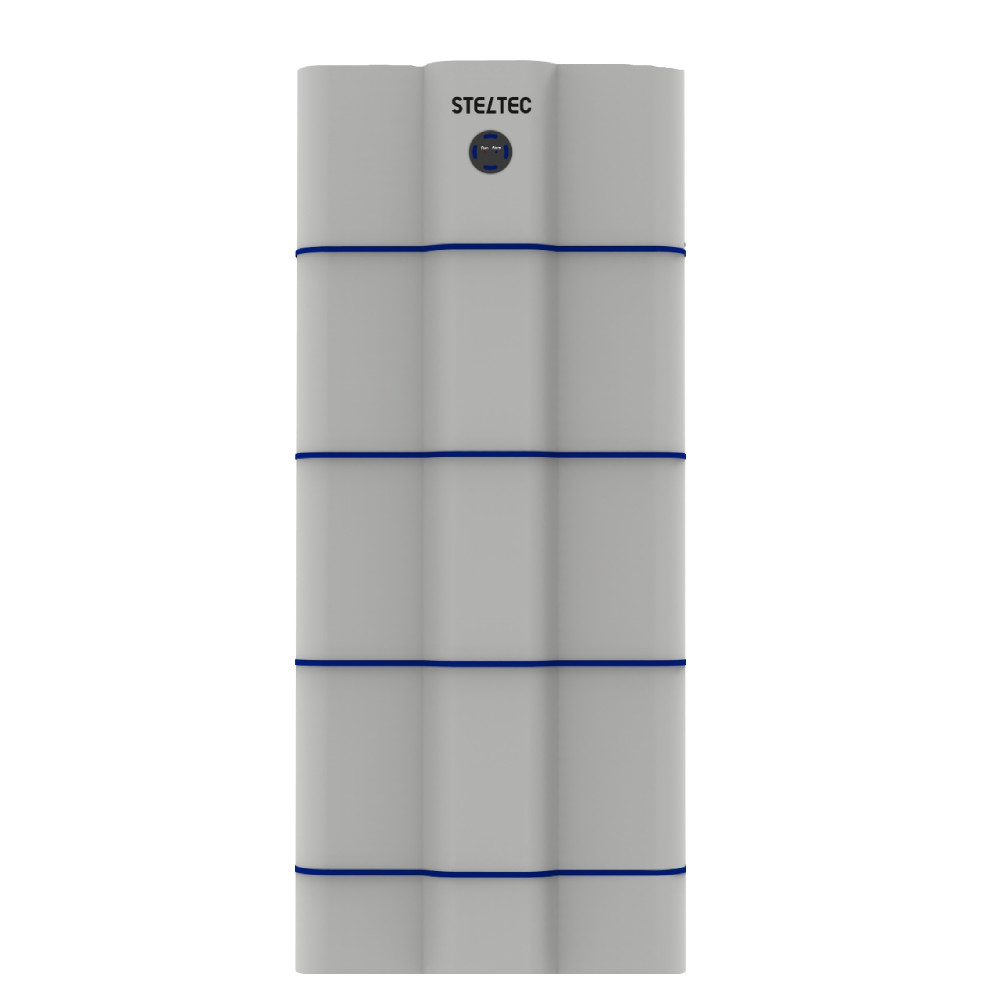

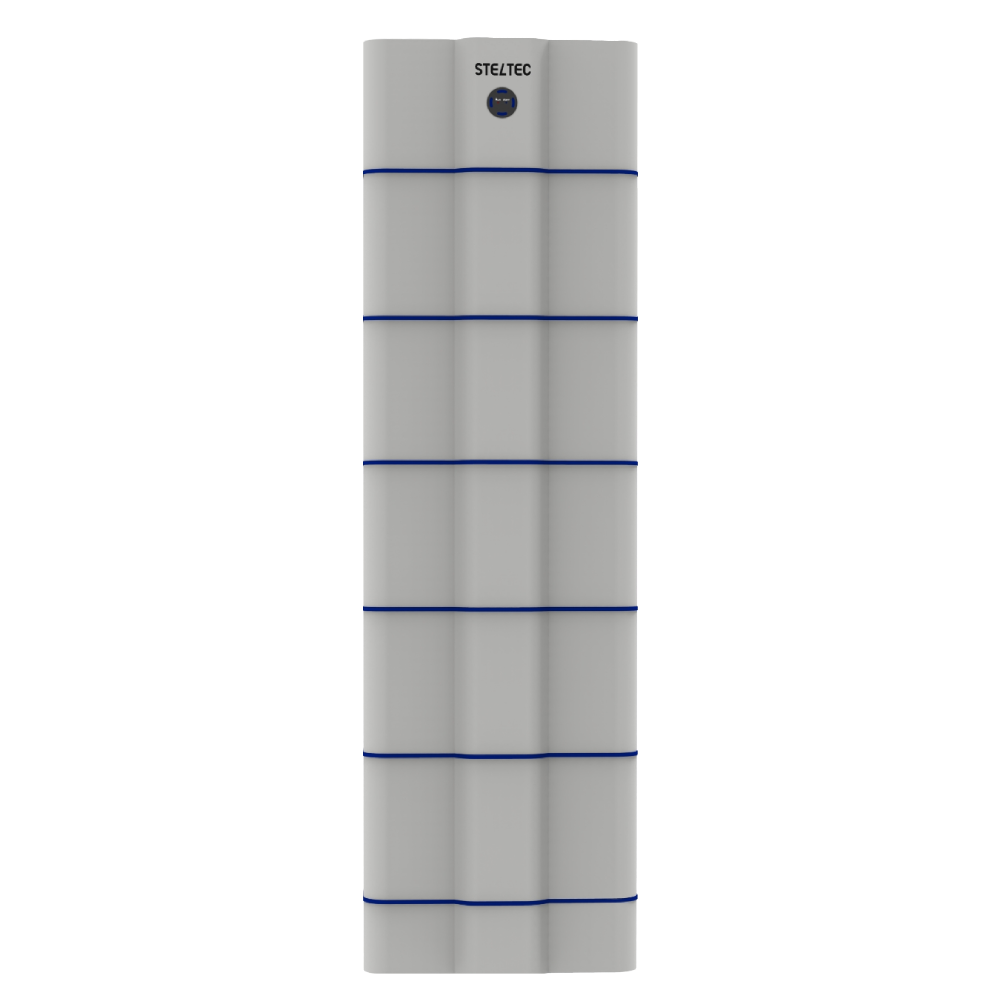

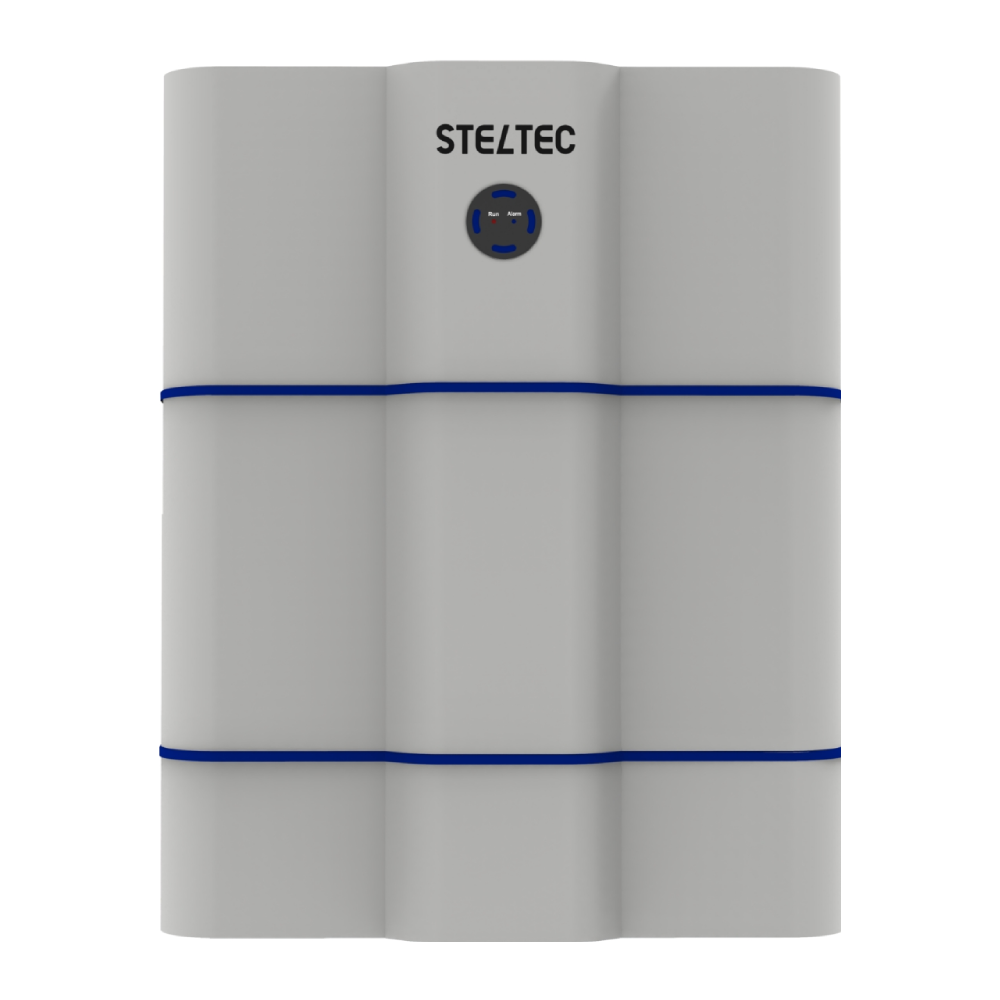

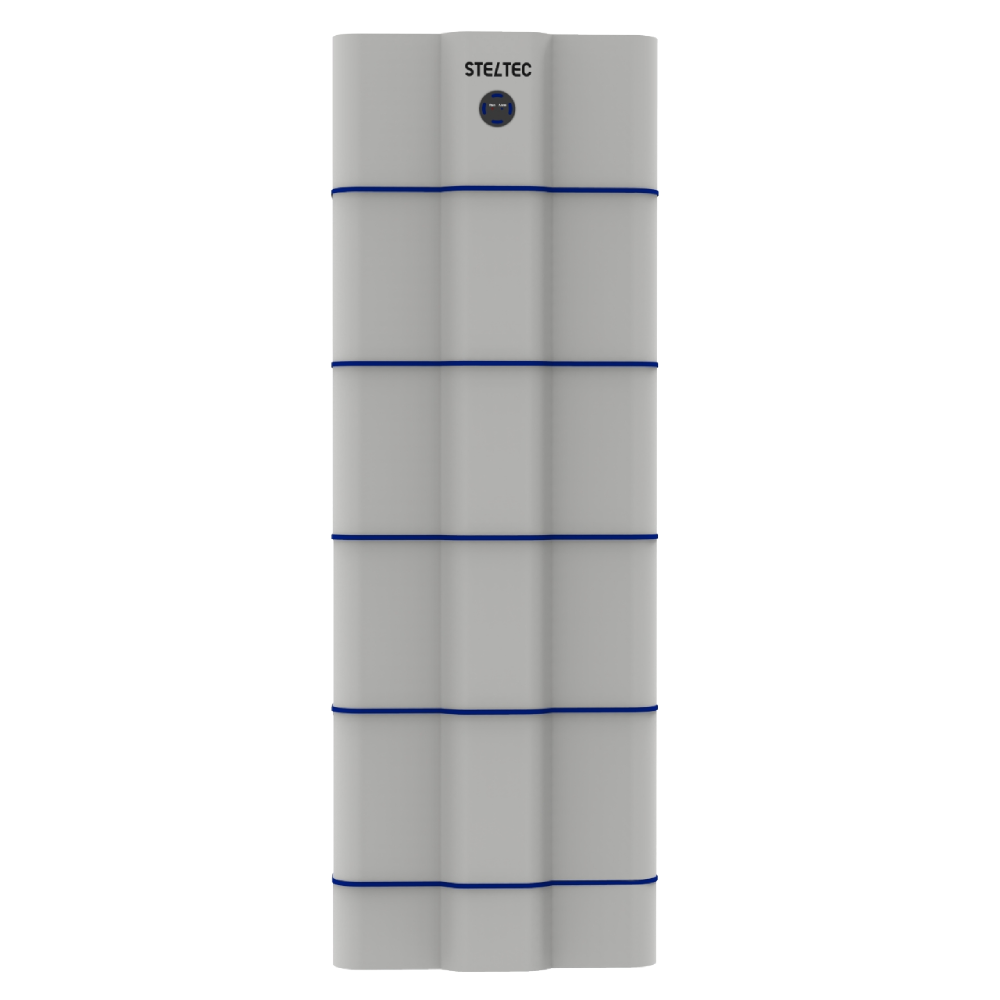

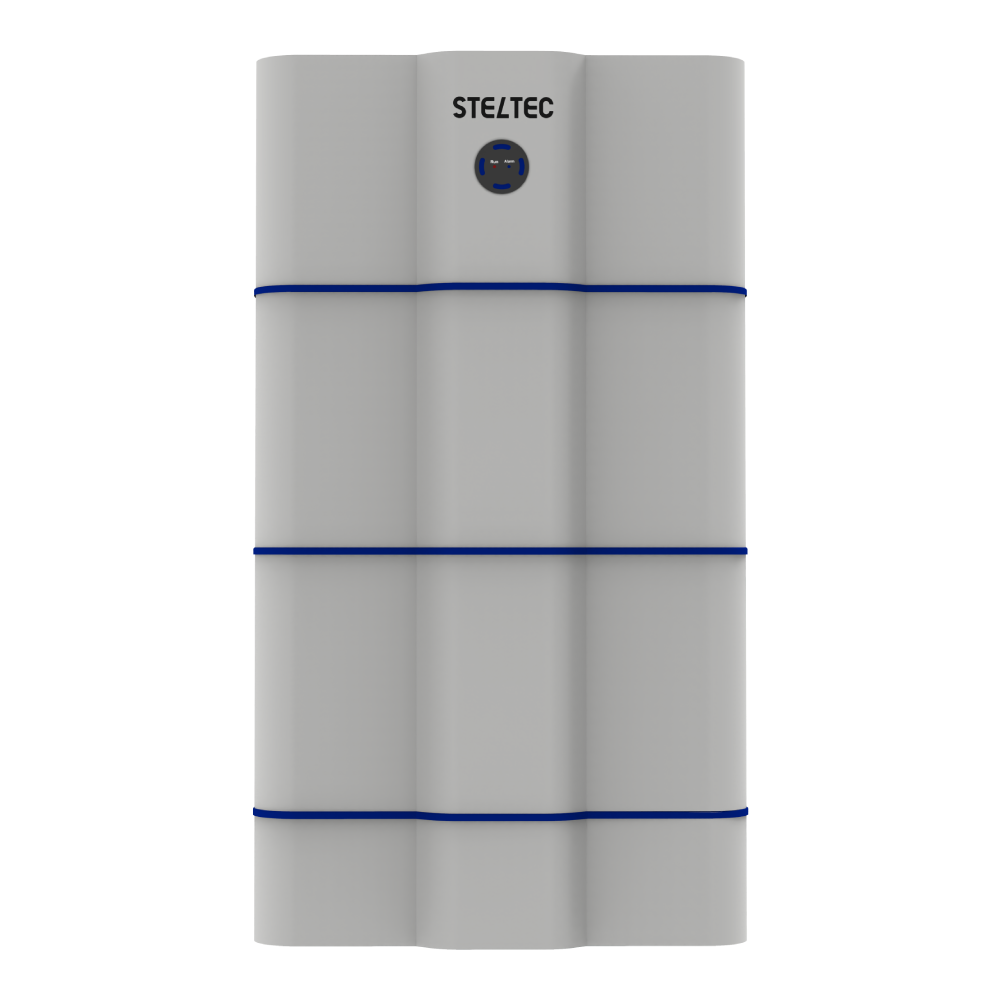

Focus-H2
Recommended 1-5 layers
Quick-install connectors, removing the need for wiring
| Dimension (L*W*H)： | High VoltageBox: 555*265*260mm, Battery Box:555*265*295mm, Base:555*265*150mm |
| Energy： | 5.12-25.6KWh |
| Operation Voltage Range： | 89.6-584V |
| Nominal capacity： | 50Ah |
| Relative humidity： | 5%~95% |
| Cooling： | Natural convention |
| Communication： | RS485,CAN |
| Protection Class： | IP65 |
